Fast, lightweight, parametric 3D CAD.

Parts, assemblies, drawings and sheet metal on an exact B-rep kernel, with the SolidWorks workflow. Native on Windows and Linux. Free during the pre-release, including for commercial work.

Download for Windows → Linux packages

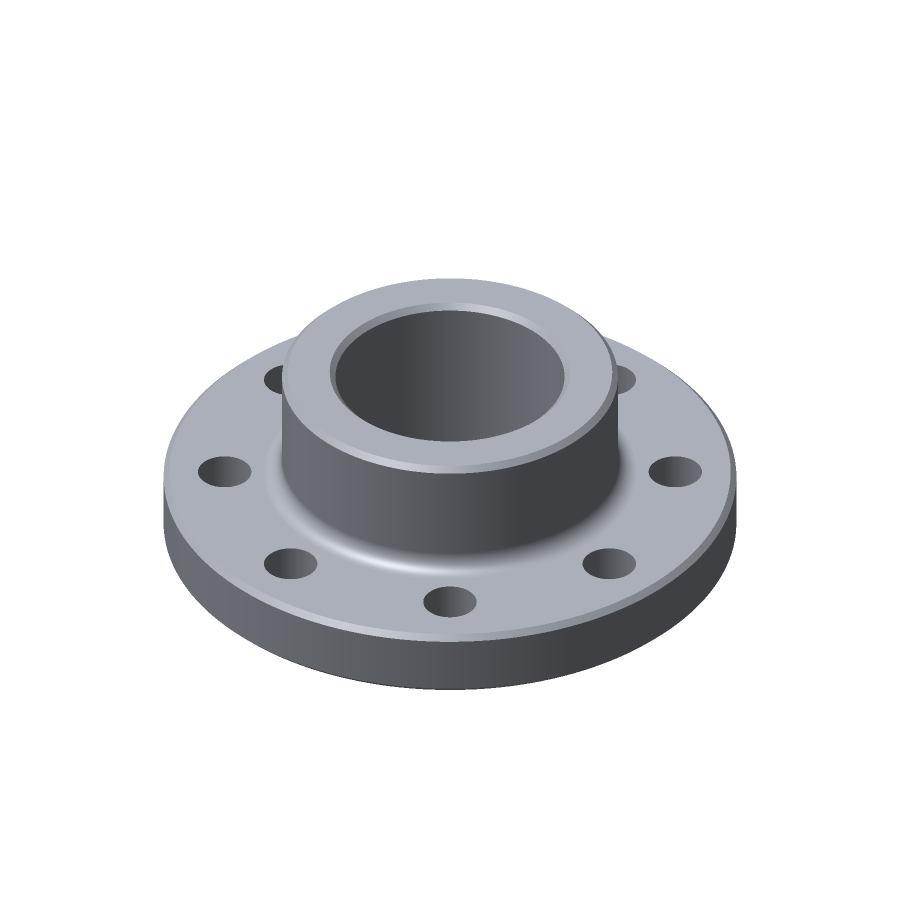

Weld-neck pipe flange modeled in SpryCAD

~1 sCold start
7–80 msParameter edit
1e-8 mmFillet accuracy
STEP AP214Parts and assemblies

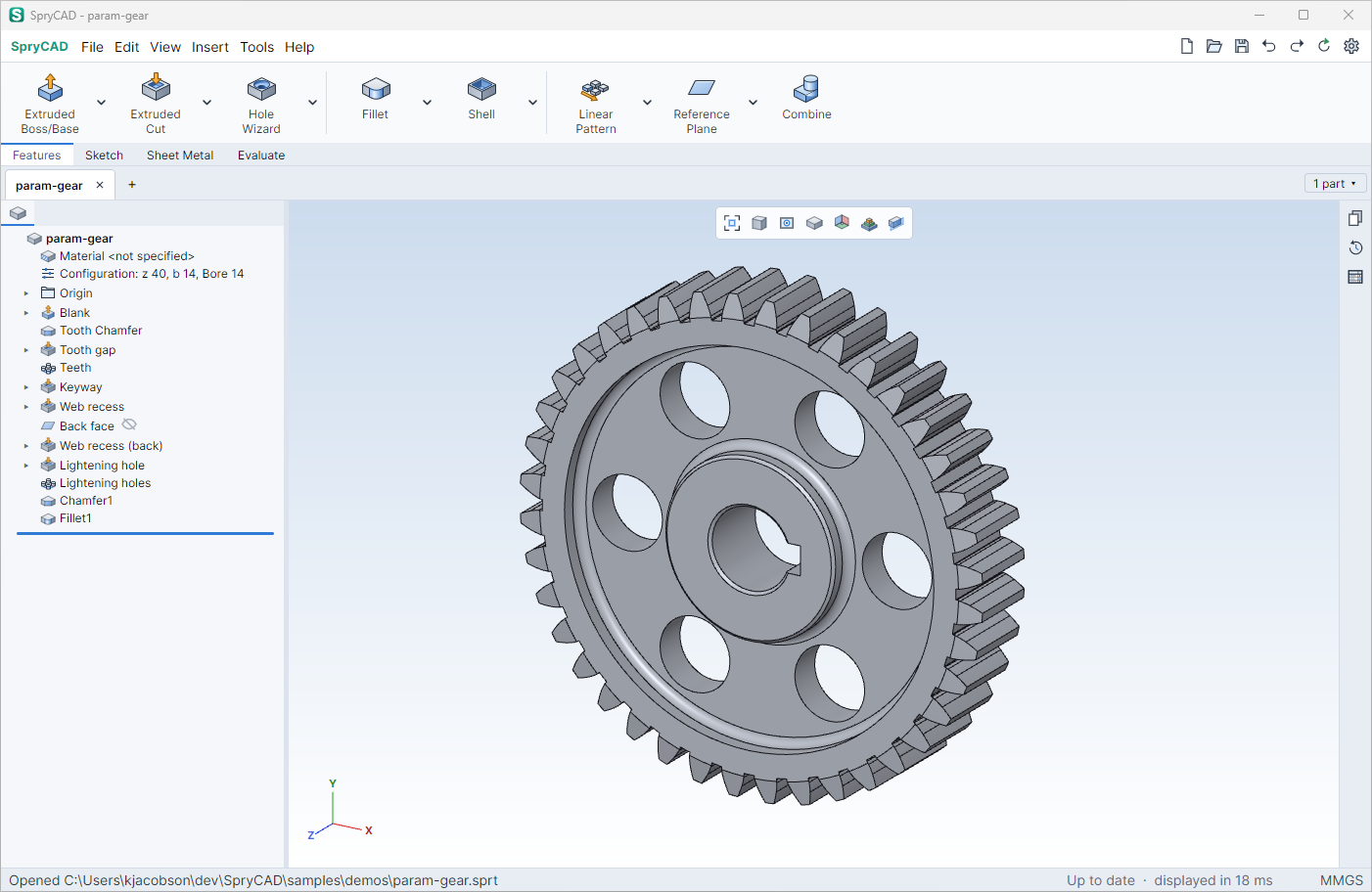

The SpryCAD main window with a spur gear, its design tree and the command tabs

Specifications

Kernel

Exact B-rep: planes, cylinders, cones, spheres, tori, NURBS. Local booleans: cost follows the size of the change. Rolling-ball fillets between any two faces.

Own code, ~3 MB

Parts

Extrude, revolve, sweep, loft, helical, thread, Hole Wizard, fillet, chamfer, shell, draft, patterns, mirror, multi-body, Combine.

.sprt

Parameters

Equations with units, suppression conditions, design tables as configurations, embedded Excel and LibreOffice workbooks.

W/2 + 5mm

Assemblies

Linked or embedded components, sub-assemblies. Standard, gear and screw mates; Motor; exploded views; interference detection; Bill of Materials.

.sasm

Standard parts

ISO and ASME screws, nuts, washers, shoulder and set screws; ISO 15 bearings. Insert Fastener fills Hole Wizard holes and their patterns.

ISO 4762, 7379, 15

Drawings

Projected, section, detail, auxiliary, broken and crop views. Dimensions with tolerances, GD&T, hole tables, BOM tables, balloons.

.sdrw · PDF · SVG · DXF

Sheet metal

Base Flange, Edge Flange, Hem, Convert to Sheet Metal. Flat patterns with K-factor or DIN 6935.

DXF · SVG

Exchange

STEP import and export of parts and assemblies, analytic surfaces and face colors kept. STL export.

AP214 · STL

Platforms

Windows 10 and 11, 64-bit. Linux x86-64, glibc 2.27 or newer: apt, dnf, tarball. OpenGL.

Native, no browser

Every feature, parameter and file format: Features.

Pricing

Pre-release

Free

All features, any number of computers, commercial use allowed.

Named seat, from 1.0

$150

Per user, perpetual, one year of updates included.

Updates

$50 / yr

Optional. Without them, the last covered version keeps running.

Seats, trial, renewal and offline use: Pricing.

Questions

Will it open files from my current CAD system?

Through STEP AP214. Assemblies keep their structure. Native files of other systems do not open.

Coming from SolidWorks?

CommandManager tabs, design tree, PropertyManager pages, the confirmation corner, and the same mouse and keyboard defaults. STEP imports as geometry, without feature history.

Is it ready for production use?

SpryCAD is pre-1.0 and changes quickly. Files keep every saved revision, and autosave recovers work after a crash. Test it on your own parts.

What is not there yet?

Surface modeling, variable-radius fillets, and corner blends where three fillets meet.

Get SpryCAD

Windows installer, apt and dnf repositories, and a Linux tarball. Parametric sample parts included.

Download →
